SMB
(Simulated Moving Bed)

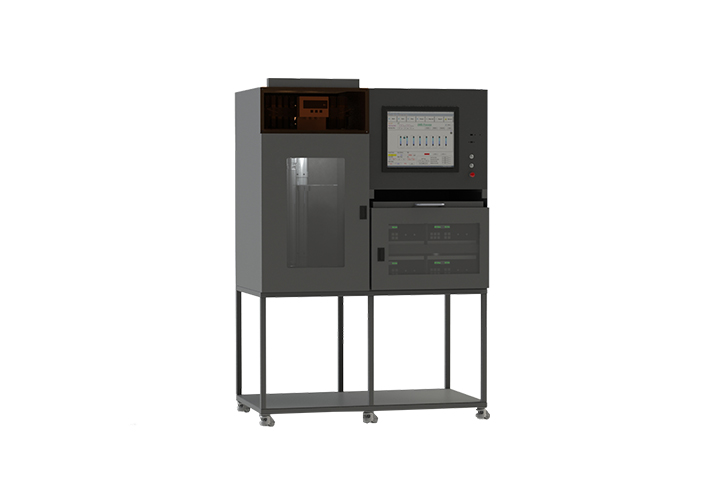

– BIOCNS S

BIOCNS S is an advanced SMB chromatography system enabling continuous, high-purity separation for biotech, fine chemical, sugar, and pharmaceutical applications.
SMB is a continuous separation process that precisely controls feed, desorbent, extract, and raffinate flows, overcoming the limitations of batch chromatography.
This process reduces solvent consumption by up to 50% and boosts productivity by 3 times, enabling cost-effective, high-efficiency purification at scale.

Features
  • Easy and fast continuous separation and purification process
  • Flexibility in selecting the number and type of columns
  • Patented valve block minimizing dead volume (Multifunction Valve)
  • Integration with various detectors and real-time monitoring
  • Support for operation method optimization programs
  • Stepwise scale-up from Lab → Pilot → Production
  • Process cost reduction through solvent reuse
  • Configurable as closed loop or open loop

BIOCNS S Series Product Code Classification

Why SMB?

Recognized as an efficient, cost-effective alternative to conventional batch chromatography

SMB is a next-generation continuous separation and purification technology applicable across various industries.

Especially Delivers high recovery, low solvent use, and shorter process times in large-scale production.
As a result, SMB is widely utilized across the biotechnology, pharmaceutical, and food industries.

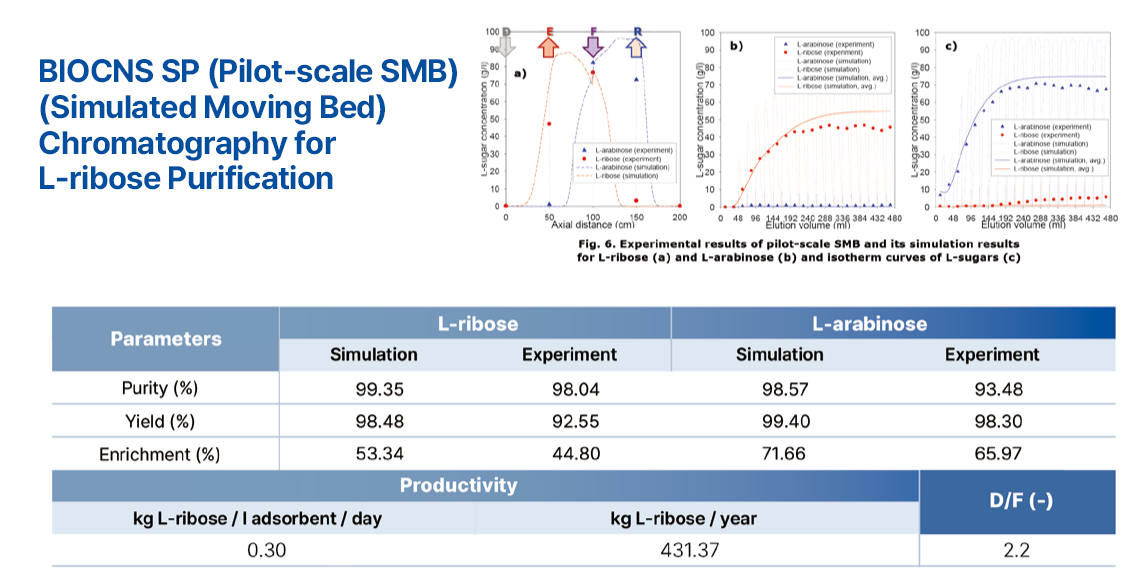

Pilot-scale SMB
(Simulated Moving Bed) Chromatography for L-ribose Purification

Pilot-scale validation with BIOCNS-SP achieved stable high purity and yield in L-ribose purification.
The data compare simulation and experimental results, confirming the reproducibility and design reliability of BIOCNS-SP.

Performance Data – BIOCNS-SP (Pilot-scale SMB)

toggle
Parameters L-ribose L-arabinose
Simulation Experiment Simulation Experiment
Purity (%) 99.35 98.04 98.57 93.48
Yield (%) 98.48 92.55 99.40 98.30
Enrichment (%) 53.34 44.80 71.66 65.97
Productivity (kg/L adsorbent/day) 0.30 – 0.43 –
D/F (-) 2.2 – – –

Comparison of SMB vs Batch Chromatography

toggle
Item SMB System Batch Chromatography
Process type Continuous Discontinuous
Solvent consumption Reduced by 2–5 times through solvent recycling High solvent consumption
Productivity (g Feed/day/L column) 189.9 1.99
Buffer consumption (mL Buffer/g Feed) 723 18
Product concentration High concentration, easy solvent removal Low concentration, requires additional concentration step

※ Source: Ganapathy Subramanian, Bioseparation and Bioprocessing (WILEY-VCH), p.236

Technical Specifications

toggle
Specification BIOCNS-SL (Lab) BIOCNS-SP (Pilot)
Number of Columns 4–8 4–16
Column Diameter (mm) 6.6–25 25–500
Flow Rate (mL/min) 0.1–100 1-1000
Pressure (PSI) 0–100 / 0–1000 0–500
Operating Temp (°C) 20–80
Pump Type Dual piston
Flow Accuracy ±5 %
Valve System Manifold system block
Column Material Glass / STS316L STS316L
Detector UV (190–1000 nm), optional RI / Cond / pH / Brix
Control System HMI + PLC
Operation Mode Step / Sequence Step / Sequence Control (Automatic switching)
Monitoring Real-time (UV, Cond, pH)
Productivity (kg/day) 0.6–1.0 3.0–5.0

※ Industrial-scale SMB systems are available with customizable columns, flow rates, and automation levels.

Applications

  • Separation and purification of rare sugars (e.g., L-ribose, L-arabinose)
  • Production of pharmaceutical intermediates and active compounds
  • Purification of food-grade and fine chemical raw materials
  • Continuous bioprocessing and process optimization research
  • Support for pilot- and industrial-scale process validation

Available Options

  • Customizable column number and size (4–16 columns, 6–500 mm)
  • Automatic valve switching and flow balancing system
  • Integration with multiple detectors (UV, RI, PDA, pH, Brix, etc.)
  • Data logging and trend analysis module
  • SCADA-based remote process control functionality

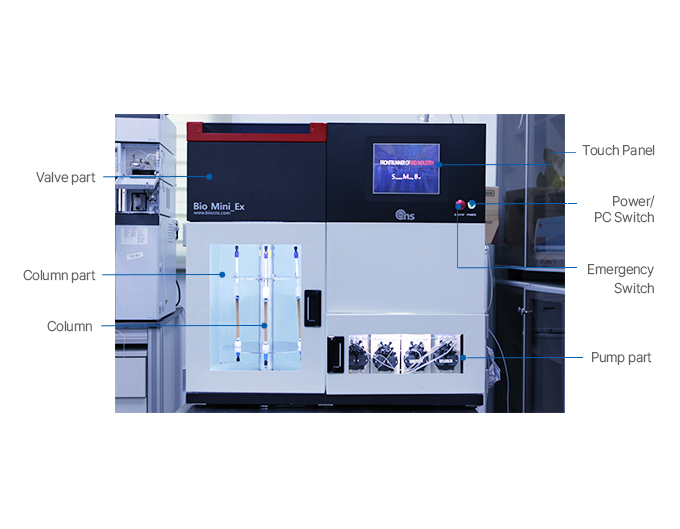

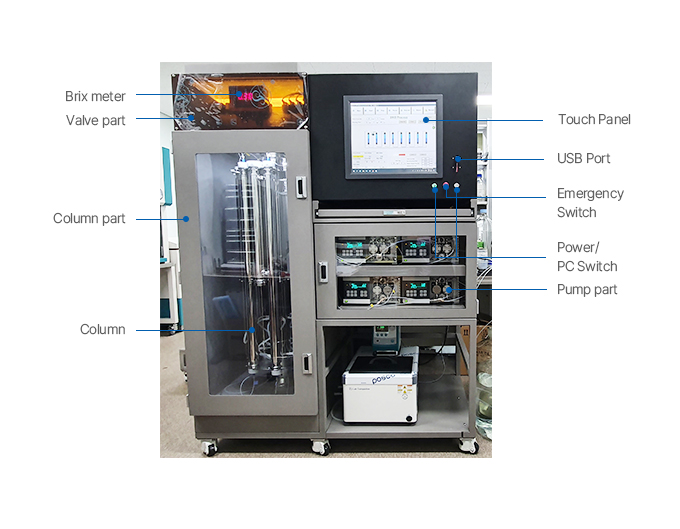

Component Overview
